15W UV ballast 198-264V...
$15.00
Model No.︰
PD12-350-15
Brand Name︰OEM
Country of Origin︰USA
Added time:2013-11-08
Mains Frequency:50/60Hz
Power Factor:>0.5
Efficiency:>80%
Operating Frequency:40-60kHz
Starting:Rapid

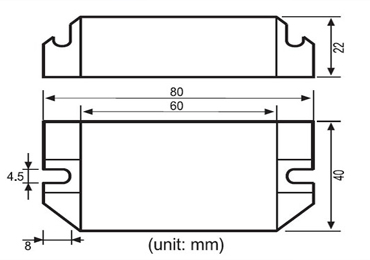

Dimensions:80*40*22mm
Installation requirement
Wire Gauge:0.5-1.0mm2
Mounting restrictions
Disconnect Input Power Before Installing or Servicing.

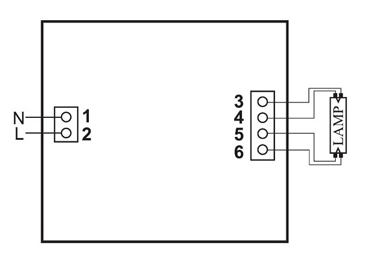

Don’t short any two wires of the four outputs.
Applications
All areas of applications include UV lamps:
Air purification
Aquarium
Domestic drinking waste
|
Type |
Input Voltage(V) |
Input Power(W) |
Input Current(A) |
Power Per Lamp(W) |
Lamp Current(A) |
Weight(kg) |
|
PD12-350-15 |
198-264 |
18.7 |
0.16A@230V |
15 |
0.30-0.35 |
0.048 |
