4W-8W UV ballast 99-132...
$16.00
Model No.︰
PD12-180-10A
Brand Name︰OEM
Country of Origin︰USA
Added time:2013-11-08
Mains Frequency:50/60Hz
Power Factor:>0.5
Efficiency:>80%
Operating Frequency:40-60kHz
Starting:Rapid

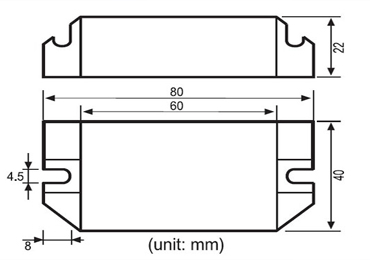

Dimensions:80*40*22mm
Installation requirement
Wire Gauge:0.5-1.0mm2
Mounting restrictions
Disconnect Input Power Before Installing or Servicing.

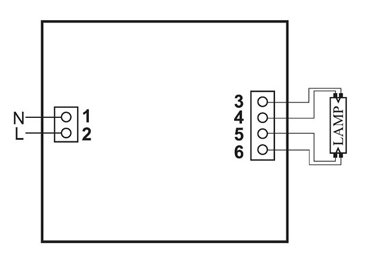

Don’t short any two wires of the four outputs.
Applications
All areas of applications include UV lamps:
Air purification
Aquarium
Domestic drinking waste
|
Type |
Input Voltage(V) |
Input Power(W) |
Input Current(A) |
Power Per Lamp(W) |
Lamp Current(A) |
Weight(kg) |
|
PD12-180-10A |
99-132 |
5-10 |
0.15A@120V |
4-8 |
0.16-0.18 |
0.048 |
