4W-8W UV ballast 99-132...
$15.00
Model No.︰
PD3-180-10A
Brand Name︰OEM
Country of Origin︰USA
Added time:2013-11-08
Power factor: >0.5
Efficiency: >80%
Operating Frequency: 40-60KHz
Starting: Rapid

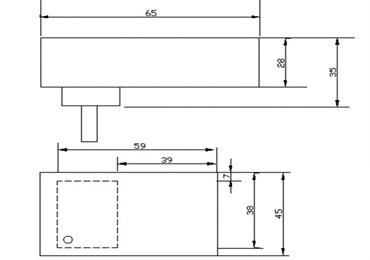

Dimensions: 65*45*35mm
Lamp status indication via LED indication
Green LED: lamp on
Red LED: lamp fault
Mounting Restrictions
Disconnect Input Power Before Installing or Servicing.
Don’t short any two wires of the four outputs.
For application with less than one switch-on cycle per day
(Otherwise preheat start ballasts are recommended)
Applications
All areas of applications include UV lamps.
Air purification
Aquarium
Domestic drinking water
Optional Parts
|
Type |
Input Voltage (V) |
Input Power (W) |
Input Current (A) |
Power Per Lamp (W) |
Lamp Current (A) |
Weight (kg) |
|
PD3-180-10A |
99-132 |
5-10 |
0.15A@120V |
4-8 |
0.15-0.18 |
0.15 |
