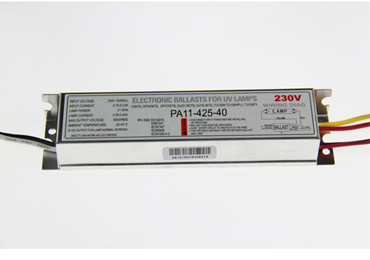

10W-41W UV ballast 198-...
$20.00
Model No.︰
PA11-425-40
Brand Name︰OEM
Country of Origin︰USA
Added time:2013-11-08
Technical Specifications
Mains Frequency: 50/60Hz
Efficiency: >90%
Operating Frequency: 40-70KHz
Input line length: 430mm
Output line length: 480mm
Signal line length: 480mm
Installation Requirement
Wire Gauge: 0.5-1.0mm2
LED specification: Vf=1.8-3.6V If=5-10mA
Mounting Restrictions
Disconnect Input Power Before Installing or Servicing.
Ballast Case Must Be Grounded.
Don’t short any two wires of the four outputs.
Features
Starting: Preheat
Lamp status indication via DC signal output.
DC5V 5mA: lamp on.
DV0V: lamp fault or no lamp.
Connect LED
Applications
All areas of applications include UV lamps.
Air purification
Aquarium
Industrial water treatment
|
Type |
Input Voltage (V) |
Input Power (W) |
Input Current (A) |
Power Per Lamp (W) |
Lamp Current (A) |
Weight (kg) |
|
PA11-425-40 |
198-264 |
28-46 |
0.37A@230V |
10-41 |
0.39-0.43 |
0.22 |
