PA11-425-36N 10W-41W UV...
$20.00
Model No.︰
PA11-425-36N
Brand Name︰OEM
Country of Origin︰USA
Added time:2017-08-30
Technical Specifications
Rated voltage: 220V/230V
Rated frequency: 50/60Hz
Input voltage range: 198V~264V
Max. Input power: 45W
Max. Input current: 0.21A@230V
Power Factor PF: >0.92
η: >90%

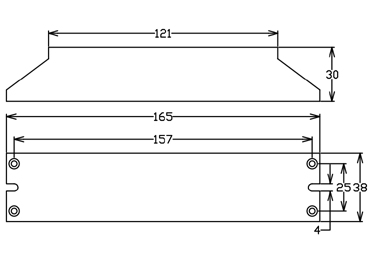

Dimensions: 165*38*30mm
Installation Requirement
Wire Gauge: 0.5-1.0mm2
LED specification: Vf=1.8-3.6V If=20-50mA
Mounting Restrictions
Disconnect Input Power Before Installing or Servicing.
Ballast Case Must Be Grounded.
Don’t short any two wires of the four outputs.
Features
Starting: Preheat, suit for frequent start
Preheat current: 0.4A~0.5A
Preheat time: 1S~2S

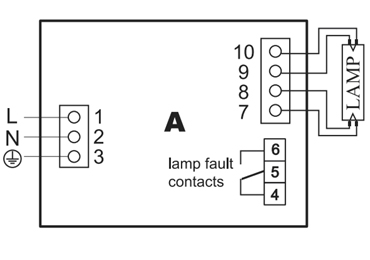

Lamp condition indication: Switch (dry contact), you can connect remote devices, used to feedback lamp working status;
Applications
All areas of applications include UV lamps.
e Air purification
e Aquarium
e Industrial water treatment
|
Type |
Input Voltage (V) |
Input Power (W) |
Input Current (A) |
Power Per Lamp (W) |
Lamp Current (A) |
Weight (kg) |
|
PA11-425-36N |
198-264 |
45 |
0.21A@230V |
10-41 |
0.39-0.43 |
0.11 |
