UV Sensor, UVC Sensor, ...
$180.00
Model No.︰
UV2-U
Brand Name︰UV Sensor
Country of Origin︰USA
Added time:2016-03-07
UV Sensor, UVC Sensor, UV Detector, UV Eye Sensor, UV Radiation Sensor, UV Monitor, UV Controller, UV Index Monitor, UV Power Monitor Sensor, UV Level Sensor
Waterproof UVC Sensor
Monitoring of relative/absolute UV-intensity
The waterproof UVC sensor serves as robust, long-time stable measuring head of the precise measurement of UVC irradiances in UV water disinfection systems and UV air purification systems.
A superior long-time stability and corrosion resistance is achieved by the selection of suitable materials.
|
Sensor Type |
Signal |
Output Value |
Spectral Range |
Load Impedance |
|
UV2-U |
voltage output |
0-5V |

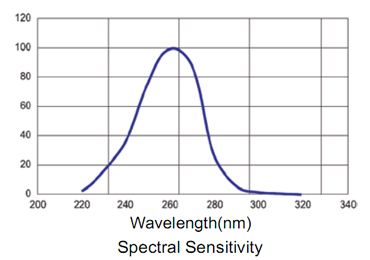

210-280nm |
>1KΩ |

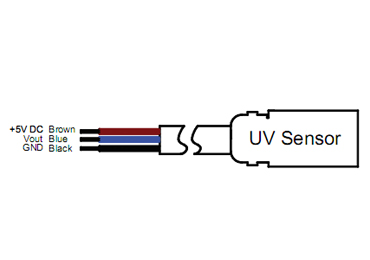

The sensor can be directly connected to the UV-Monitor UV-1, UV-2, UV-3, UV-4, or UV-5 via a 2.5 meter long (standard) shielded cable. Thus integration into UV lamp monitoring, adjustment and control is possible.
Technical Data
Measuring range: 20mW/cm2
Resolution: 0.01mW/cm2
Weight: 180g
Operating temp.: 0-60℃
Storage temp.: -10-70℃
Humidity: <80%
Supply voltage: 5V DC
Body: Stainless Steel 316L
Max. Pressure: 10bar
Cable: Length 2.5m (longer on request)
We support retail and wholesale. Any questions, please email: service@uvebay.com
