UV Sensor, UVC Sensor, ...
$295.00
Model No.︰
UV10-I
Brand Name︰OEM
Country of Origin︰USA
Added time:2022-10-27
UVC Sensor UV10-I Monitoring of relative/absolute UV-intensity
The UVC sensor serves as robust, long-time stable measuring head for the precise measurement of UVC irradiances in UV water disinfection systems and UV Air purification systems.
A superior long-time stability and corrosion resistance is achieved by the selection of suitable materials.
|
Sensor Type |
Power Supply |
Signal |
Output Value |
Measuring range |
Load Impedance |
|
UV10-I |
12V / 24V DC |
current output |
4~20mA |
100mW/cm2 |
>1KΩ |

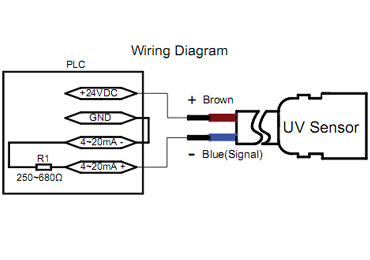

The sensor can be directly connected to the PLC or other equipment via a 2.5 meter long (standard) shielded cable. Thus integration into UV-lamp monitoring, adjustment and control is possible.
Technical Data
Resolution： 0.01mW/cm2
Weight: 420g
Operating temp.: 0~60℃
Storage temp.: 10~70℃
Humidity: <80%
Body: Stainless steel 316L
Max. Pressure: 0 bar
Cable: Length 2.5m (longer on request)
We support retail and wholesale. Any questions, please email: service@uvebay.com
