55-95W uv ballast $45
$45.00
Model No.︰
PA1-900-100U
Brand Name︰Beasun
Country of Origin︰China
Added time:2021-08-21
Technical Specifications
Mains Voltage: 99-264V
Mains Frequency: 50/60Hz
Power Factor: >0.99
Efficiency: >90%
Operating Frequency: 34KHz

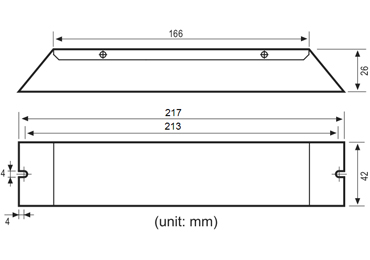

Dimensions: 217*42*26mm
Installation Requirement
Wire Gauge: 0.5-1.5mm2
Max. cable length between ballasts and lamp: 3m
LED specification: Vf=1.8-3.6V If=5-20mA
Mounting Restrictions
Disconnect Input Power Before Installing or Servicing.
Ballast Case Must Be Grounded.

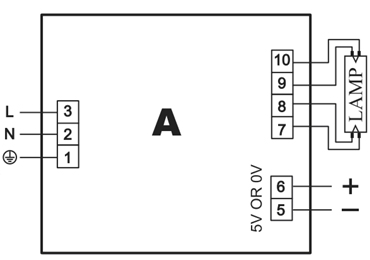

Don’t short any two wires of the four outputs.
Features
Starting: Preheat
Lamp status indication via DC signal output
DC 5V±5% （5mA）: lamp on.
DC 0V: lamp fault or no lamp.
Connect LED.
Applications
e Air purification
e Industrial water treatment
e Kitchen purification
|
Type |
Input Voltage (V) |
Input Power (W) |
Input Current (A) |
Power Per Lamp (W) |
Lamp Current (A) |
Weight (kg) |
|
PA1-900-100U |
198-264 |
90 |
0.65A@230V |
55-95 |
0.75-0.85 |
0.22 |
