57W-150W UV ballast 99-...
$85.00
Model No.︰
PA55-1500-150N
Brand Name︰OEM
Country of Origin︰USA
Added time:2018-03-29
Mains Voltage: 110/240VAC
Mains Frequency: 50/60Hz
Power Factor: >0.98
Efficiency: >92%
Operating Frequency: 40-60KHz
Dimensions: 250*65*40mm

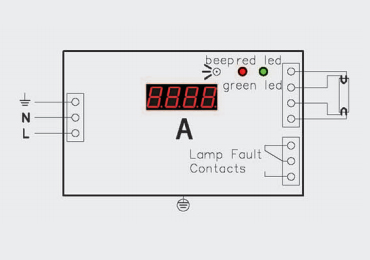

Lamp status indication via LED indication
Green LED: lamp on
Red LED: lamp fault
Lamp status forwarding
Potential free relay contacts for lamp on/lamp fault.
Installation Requirement
Wire Gauge: 0.5-1.5mm2
Max. cable length between ballasts and lamp: 5m
Relay contacts: potential free, load: 50…500mA at 24…230V AC;
50…500mA at 5…60V DC
DC5V±5% 5mA: lamp on.
DC0V: lamp fault or no lamp. Connect LED.
DC5V±10% Max. 50mA: lamp on.
DCOV: lamp fault or no lamp. Connect Relay.
Mounting Restrictions
Disconnect Input Power Before Installing or Servicing.
Ballast Case Must Be Grounded.
Don’t short any two wires of the four outputs.
Features
Starting: Preheat
Applications
All areas of applications include UV lamps.
Air purification
Industrial water treatment
Municipal water treatment
|
Type |
Input Voltage (V) |
Input Power (W) |
Input Current (A) |
Power Per Lamp (W) |
Lamp Current (A) |
Weight (kg) |
|
PA55-1500-150N |
99-264 |
167 |
1.50A@110V 0.74A@240V |
57-150 |
1.35-1.55 |
1.7 |
