Steril Aire P/N:SA-1000...
$30.00
Model No.︰
P/N:SA-10000127 U1-1/110UV
Brand Name︰Steril Aire
Country of Origin︰USA
Added time:2018-04-18
Technical specifications
Mains Frequency：50/60Hz
Power Factor:>0.55
Efficiency:>90%
Operating Frequency:40-70kHz
Starting:Instant

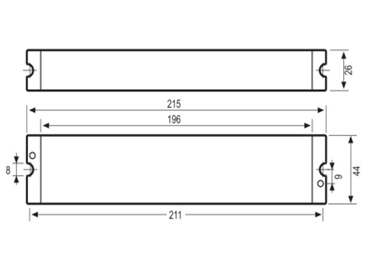

Dimensions:215*44*26mm
Input line length:430mm
Output line length:630mm
Signal line length:630mm
Installation requirement
Wire Gauge:0.5-1.0mm2
Max.cable length between ballasts and lamp:5m
LDE specification:VF=1.8-3.6V IF=20-50mA
Mounting restrictions
Disconnect Input Power Before Installing or Servicing.
Ballast Case must Be Grounded.

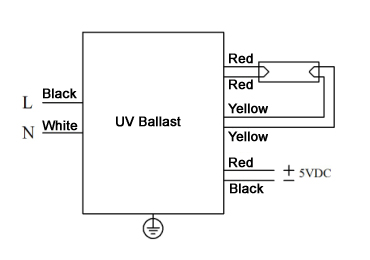

Don’t short any two wires of the four outputs.
The yellow wire must be insulated when driving a lamp.
For applications with less than one
Switch-on cycle per day
(other otherwise preheat start ballasts are recommended)
Lamp filament must be suitable for instant start
operation,need confirm with lamp manufacturer.
Features
Lamp status indication via DC signal output.
DC3-6V 5mA:lamp on.
DC0-2V:lamp fault or no lamp.
Applications
All areas of applications include UV lamps:
Air purification
Aquarium
Industrial water treatment
Kitchen purification
|
Type |
Input Voltage(V) |
Input Power(W) |
Input Current(A) |
Power Per Lamp(W) |
Lamp Current(A) |
Weight(kg) |
|
P/N:SA-10000127 U1-1/110UV |
99-240 |
105 |
0.83A@240V |
36-95 |
0.75-0.85 |
0.39 |
