TechniAir TA/EB/15(2*70...
$55.00
Model No.︰
TA/EB/15(2*70W)
Brand Name︰TechniAir
Country of Origin︰USA
Added time:2017-09-30
Mains Voltage:110/240VAC
Mains Frequency:50/60Hz
Power Factor:>0.98
Efficiency:>92%
Operating Frequency:40-60kHz
Dimensions:250*65*45mm

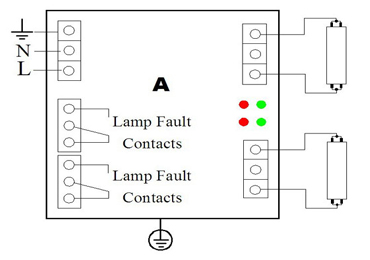

Lamp status indication via LED indication
Green LED:Lamp on
Red LED:Lamp fault
Lamp status forwarding
Potential free relay contacts for lamp on/lamp fault.
Installation requirement
Wire Gauge:0.5-1.0mm2
Max.cable length between ballasts and lamp:5m
Relay contacts:potential free,load:
50…500mA at 24…230VAC;50…500mA at 5…60VDC
Mounting restrictions
Disconnect Input Power Before Installing or Servicing.
Ballast Case must Be Grounded.
Don’t short any two wires of the four outputs.
For applications with less than one
Switch-on cycle per day
(other otherwise preheat start ballasts are recommended)
Lamp filament must be suitable for instant start
operation,need confirm with lamp manufacturer.
Features
Starting:Instant
Applications
All areas of applications include UV lamps
Air purification
Industrial water treatment
Kitchen purification
|
Type |
Input Voltage(V) |
Input Power(W) |
Input Current(A) |
Power Per Lamp(W) |
Lamp Current(A) |
Weight(kg) |
|
TA/EB/15(2*70W) |
99-264 |
93-175 |
0.77A@230V |
21-79 |
0.39-0.43 |
0.52 |
