ADVANCE PSL1B-080-DDCV ...
$65.00
Model No.︰
PSL1B-080-DDCV
Brand Name︰ADVANCE
Country of Origin︰USA
Added time:2017-05-19
Mains Voltage:110/240VAC
Power Factor:>0.98
Efficiency:>90%
Operating Frequency:40-60kHz
Starting:Preheat

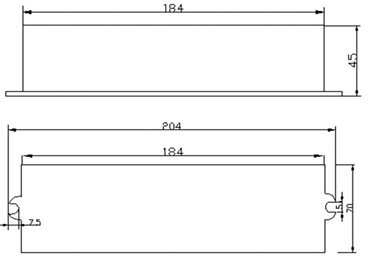

Dimensions:204*70*45mm

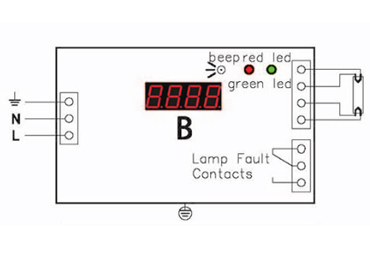

Lamp status indication via LED indication
Green LED:Lamp on
Red LED:Lamp fault
Installation requirement
Wire Gauge:0.5-1.0mm2
Max.cable length between ballasts and lamp:5m
Mounting restrictions
Disconnect Input Power Before Installing or Servicing.
Don’t short any two wires of the four outputs.
Applications
All areas of applications include UV lamps:
Domestic drinking waster
Industrial water treatment
Attention: this ballast we sold is with 4 flat pins holder (like: GPH1050T5L/HO/4P).
|
Type |
Input Voltage(V) |
Input Power(W) |
Input Current(A) |
Power Per Lamp(W) |
Lamp Current(A) |
Weight(kg) |
|
PSL1B-080-DDCV |
99-264 |
49-123 |
1.14A@110V 0.52A@240V |
80 |
0.425 |
0.75 |
