Ueberall AQUAFINE EVG 4...
$40.00
Model No.︰
EVG 40W,PN:7072
Brand Name︰EVG
Country of Origin︰USA
Added time:2021-03-04
Mains Frequency: 50/60Hz
Efficiency: >90%
Operating Frequency: 40-60KHz

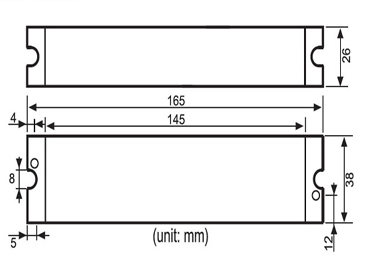

Dimensions: 165*38*29mm
Installation Requirement
Wire Gauge: 0.5-1.0mm2
LED specification: Vf=1.8-3.6V If=20-50mA
Mounting Restrictions
Disconnect Input Power Before Installing or Servicing.
Ballast Case Must Be Grounded.

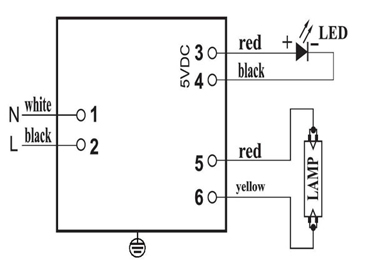

Don’t short any two wires of the four outputs.
Features
Starting: Preheat
Lamp status indication via DC signal output.
DC5V 5mA: lamp on.
DV0V: lamp fault or no lamp.
Applications
All areas of applications include UV lamps.
Air purification
Aquarium
Industrial water treatment
|
Type |
Input Voltage (V) |
Input Power (W) |
Input Current (A) |
Power Per Lamp (W) |
Lamp Current (A) |
Weight (kg) |
|
EVG 40W,PN:7072 |
198-264 |
45 |
0.21A@230V |
10-41 |
0.39-0.43 |
0.11 |
