21W-41W UV ballast 99-1...
$21.00
Model No.︰
PD4-425-40A
Brand Name︰OEM
Country of Origin︰USA
Added time:2013-11-08
Mains Frequency: 50/60Hz
Power factor: >0.5
Efficiency: >80%
Operating Frequency: 40-60KHz
Starting: Rapid

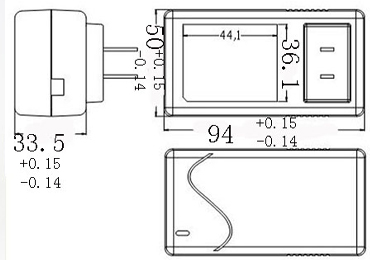

Dimensions: 94*50*34mm
Lamp status indication via LED indicators
Green LED: lamp on
Red LED: lamp fault
Mounting Restrictions
Disconnect Input Power Before Installing or Servicing.
Don’t short any two wires of the four outputs.
Applications
All areas of applications include UV lamps.
Air purification
Aquarium
Domestic drinking water
Optional Parts
|
Type |
Input Voltage (V) |
Input Power (W) |
Input Current (A) |
Power Per Lamp (W) |
Lamp Current (A) |
Weight (kg) |
|
PD4-425-40A |
99-132 |
45 |
0.68A@120V |
21-41 |
0.35-0.42 |
0.18 |
