240W-325W UV ballast 19...
$90.00

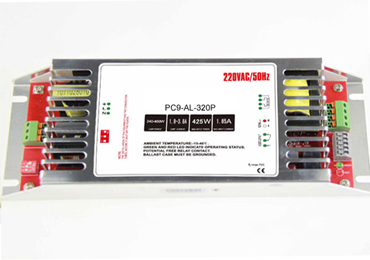

Model No.︰
PC9-AL-320P
Brand Name︰OEM
Country of Origin︰USA
Added time:2013-11-08
Mains voltage:230VAC
Power Factor:>0.98
Efficiency:>94%
Operating Frequency:28-60kHz
Starting:Preheat

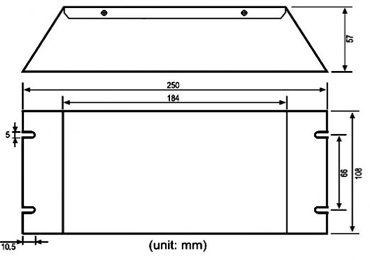

Dimensions:250*108*57mm
Lamp status indication via LED indication
Green LED:Lamp on
Red LED:Lamp fault
Lamp status forwarding
Potential free relay contacts for lamp on/lamp fault..
Installation requirement
Wire Gauge:0.5-1.0mm2
Relay contacts:potential free,
Load:50…500mA at 24…230V AC;
50…500mA at 5…60V DC
Mounting restrictions
Disconnect Input Power Before Installing or Servicing.
Ballast Case must Be Grounded.
Don’t short any two wires of the four outputs.
Features
PWM dimmable function:
The lamp power can be adjusted from 60% to 100%.
|
Type |
Input Voltage(V) |
Input Power(W) |
Input Current(A) |
Power Per Lamp(W) |
Lamp Current(A) |
Weight(kg) |
|
PC9-AL-320P |
198-264 |
341 |
1.49 |
240-325 |
1.8-2.2 |
0.83 |
