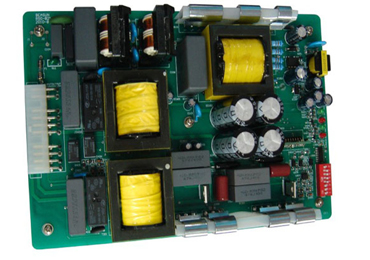

240W-325W UV ballast 19...
$260.00
Model No.︰
PC01-AL-2/320
Brand Name︰OEM
Country of Origin︰USA
Added time:2013-11-08
Mains voltage:230VAC
Mains Frequency：50/60Hz
Power Factor:>0.98
Efficiency:>94%
Operating Frequency:28-80kHz

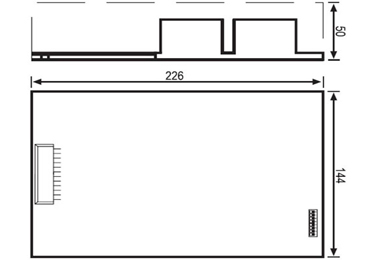

Dimensions:220*144*50mm
Lamp status indication via LED indication
Green LED:Lamp on
Red LED:Lamp fault
Lamp status forwarding
Potential free relay contacts for lamp on/lamp fault..
Installation requirement
Wire Gauge:0.5-1.5mm2
Max.cable length between ballasts and lamp:5m
Relay contacts:potential free,
Load:50…500mA at 24…230V AC;
50…500mA at 5…60V DC
Mounting restrictions
Disconnect Input Power Before Installing or Servicing.
Ballast Case must Be Grounded.
Don’t short any two wires of the four outputs.
Features
Starting:Preheat
RS485 dimmable function:
The lamp power can be adjusted from 60% to 100%.
Applications
All areas of applications include UV lamps
Municipal water treatment
Industrial water treatment
Water injection for oilfield
More information,please refer to the manual
|
Type |
Input Voltage(V) |
Input Power(W) |
Input Current(A) |
Power Per Lamp(W) |
Lamp Current(A) |
Weight(kg) |
|
PC01-AL-2/320 |
198-305 |
692 |
3.0A@230V |
240-325 |
1.8-2.2 |
1.5 |
