55W-95W UV ballast 99-2...
$60.00
Model No.︰
PA51-800-95L
Brand Name︰OEM
Country of Origin︰USA
Added time:2018-03-29
Mains Voltage:110/240VAC
Power Factor:>0.98
Efficiency:>90%
Operating Frequency:40-60kHz
Starting:Preheat

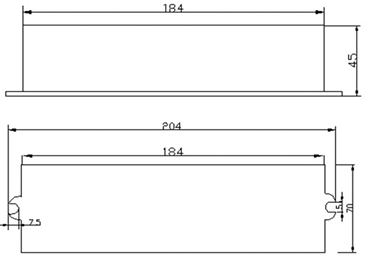

Dimensions:204*70*45mm

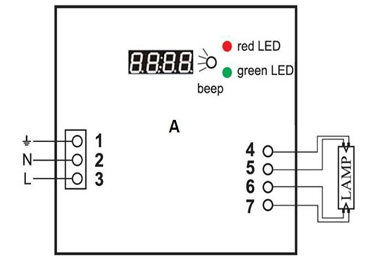

Lamp status indication via LED indication
Green LED:Lamp on
Red LED:Lamp fault
Installation requirement
Wire Gauge:0.5-1.0mm2
Max.cable length between ballasts and lamp:5m
Mounting restrictions
Disconnect Input Power Before Installing or Servicing.
Don’t short any two wires of the four outputs.
Applications
All areas of applications include UV lamps:
Domestic drinking waster
Industrial water treatment
|
Type |
Input Voltage(V) |
Input Power(W) |
Input Current(A) |
Power Per Lamp(W) |
Lamp Current(A) |
Weight(kg) |
|
PA51-800-95L
|
99-264 |
103 |
0.94A@110V 0.43A@240V |
55-95 |
0.75-0.85 |
0.35 |
