15W UV ballast 198-264V...
$15.00
Model No.︰
PA12-350-15
Brand Name︰OEM
Country of Origin︰USA
Added time:2013-11-08
Mains Frequency: 50/60Hz
Power factor: >0.55
Efficiency: >80%
Operating Frequency: 40-60KHz
Starting: Preheat

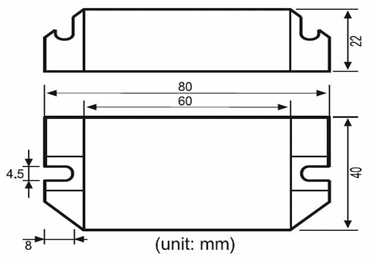

Dimensions: 80*40*22mm

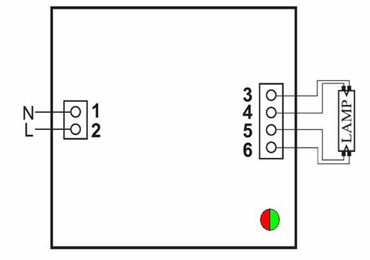

Lamp status indication via LED indication
Green LED: lamp on
Red LED: lamp fault
Installation Requirement
Wire Gauge: 0.5-1.0mm2
Max. cable length between ballasts and lamp: 5m
Mounting Restrictions
Disconnect Input Power Before Installing or Servicing.
Don’t short any two wires of the four outputs.
Features
Starting: Preheat
Applications
All areas of applications include UV lamps.
Air purification
Aquarium
Domestic drinking water
|
Type |
Input Voltage (V) |
Input Power (W) |
Input Current (A) |
Power Per Lamp (W) |
Lamp Current (A) |
Weight (kg) |
|
PA12-350-15 |
198-264 |
18.7 |
0.16A@230V |
15 |
0.30-0.35 |
0.048 |
