80W-172W UV ballast 198...
$82.00
Model No.︰
Pb9-2100-2/172
Brand Name︰OEM
Country of Origin︰USA
Added time:2013-11-08
Mains voltage:230VAC
Mains Frequency：50/60Hz
Power Factor:>0.98
Efficiency:>94%
Operating Frequency:40-60kHz
Starting:Instant

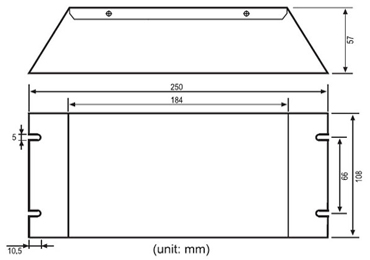

Dimensions:250*108*57mm
Lamp status indication via LED indication
Green LED:Lamp on
Red LED:Lamp fault

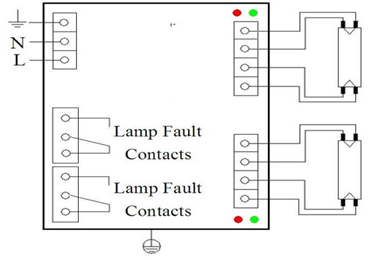

Lamp status forwarding
Potential free relay contacts for lamp on/lamp fault..
Installation requirement
Wire Gauge:0.5-1.0mm2
Max.cable length between ballasts and lamp:5m
Relay contacts:potential free,
Load:50…500mA at 24…230V AC;
50…500mA at 5…60V DC
Mounting restrictions
Disconnect Input Power Before Installing or Servicing.
Ballast Case must Be Grounded.
Don’t short any two wires of the four outputs.
Applications
All areas of applications include UV lamps:
Air purification
Municipal water treatment
Industrial water treatment
Water injection for oilfield
|
Type |
Input Voltage(V) |
Input Power(W) |
Input Current(A) |
Power Per Lamp(W) |
Lamp Current(A) |
Weight(kg) |
|
Pb9-2100-2/172 |
198-305 |
366 |
1.60A@230V |
2*80-172 |
2.0-2.2 |
0.83 |
