35W-95W UV ballast 198-...
$35.00
Model No.︰
PA7-800-95
Brand Name︰OEM
Country of Origin︰USA
Added time:2018-04-11
Mains Voltage: 230VAC
Mains Frequency: 50/60Hz
Power Factor: >0.9
Efficiency: >90%
Operating Frequency: 40-60KHz

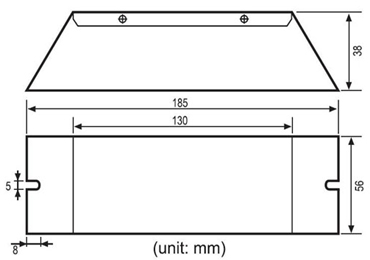

Dimensions: 185*56*38mm

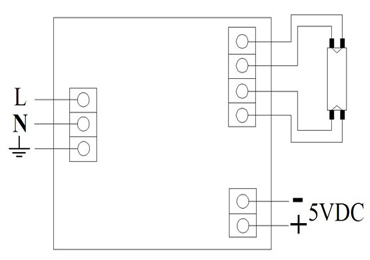

Installation Requirement
Wire Gauge: 0.5-1.0mm2
Max. cable length between ballasts and lamp: 5m
LED specification: Vf=1.8-3.6V If=5-20mA
Mounting Restrictions
Disconnect Input Power Before Installing or Servicing.
Ballast Case Must Be Grounded.
Don’t short any two wires of the four outputs.
Features
Starting: Preheat
Lamp status indication via DC signal output
DC 5V±5% （5mA）: lamp on.
DC 0V: lamp fault or no lamp.
Connect LED.
Applications
Air purification
Industrial water treatment
Kitchen purification
|
Type |
Input Voltage (V) |
Input Power (W) |
Input Current (A) |
Power Per Lamp (W) |
Lamp Current (A) |
Weight (kg) |
|
PA7-800-95 |
198-264 |
62.5-108 |
0.51A@230V |
35-95 |
0.75-0.85 |
0.27 |
